• 11150 TDW Multi Purpose Vessel

    In close cooperation with Royal Niestern Sander, Conoship International developed a completely new 11150tdw multi purpose vessel for the Dutch shipping company Royal Wagenborg. The design features two box shaped cargo holds that are arranged and equipped for the carriage of containers, general cargoes, timber, paper and bulk cargoes. Each hold is fitted with a moveable separation bulkheads which can be placed at several positions and can alternately also serve as tweendeck.

    VESSEL NAME: m.v. ‘Eemsborg’

    OWNER: Royal Wagenborg, Delfzijl, The Netherlands

    BUILDER: Royal Niestern Sander, Delfzijl, The Netherlands

    11500tdw MPP m.v. Ebroborg
PRINCIPAL PARTICULARS
Length over all137.90 m
Length between p.p.131.50 m
Breadth moulded15.87 m
Depth11.00 m
Draught7.98 m
Deadweight11150 ton
Gross tonnage7200
Speed (service)14 kn
Ice ClassFinnish-Swedish 1A
EQUIPMENT
Main engine4500 kW
Shaft generator750 kW
Auxiliary engines (3x)264 kW
Bow thruster700 kW
CONTAINER CAPACITIES
Hold dimensions, hold I41.44 x 13.20 x 11.23 m
Hold dimensions, hold II54.76 x 13.20 x 11.23 m
Cargo hold capacity481800 cb.ft
Tank top load15 t/m2
Container capacity (total)432 TEU
CAPACITIES
HFO863 m3
Gasoil67 m3
Potable water57 m3
Ballast water4050 m3
11500tdw MPP m.v. Ebroborg

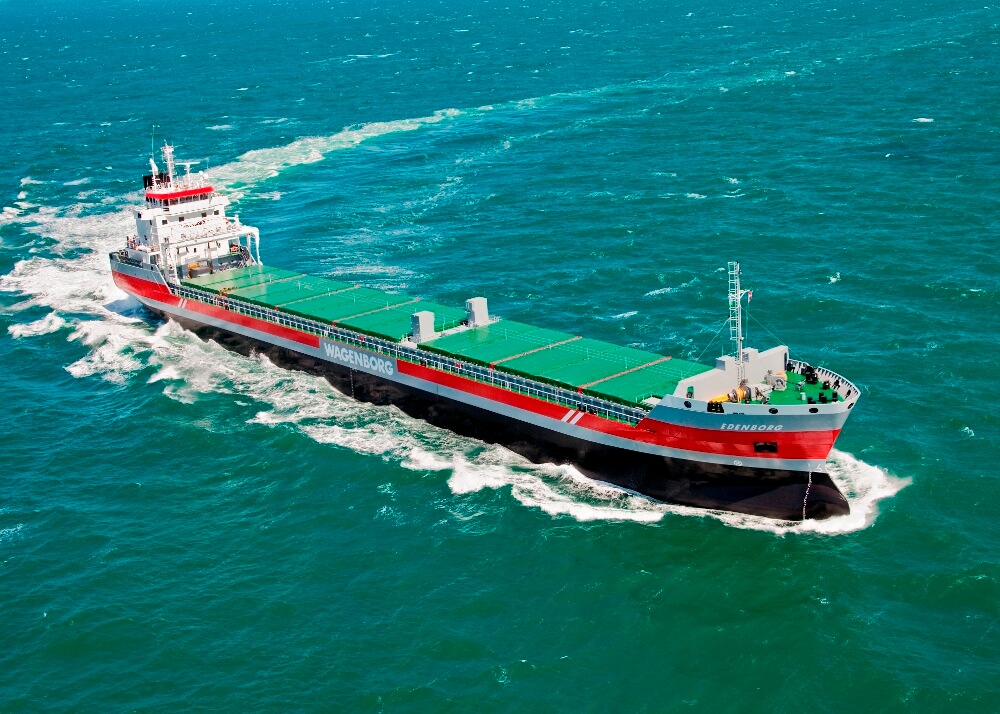

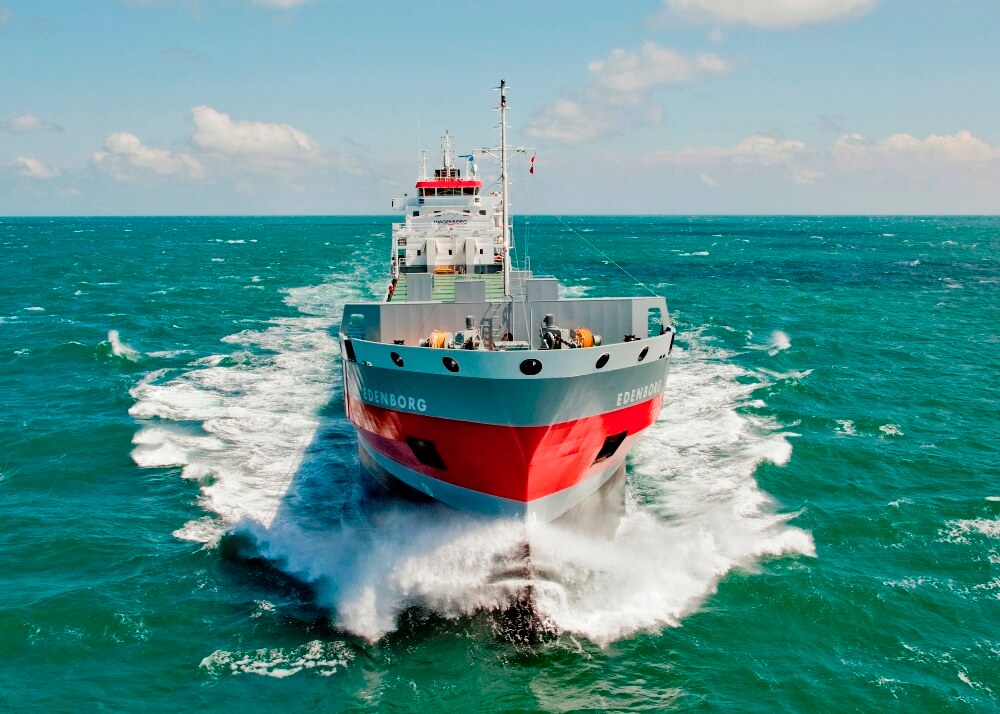

11500tdw MPP m.v. Ebroborg 11500tdw MPP m.v. Eemsborg 11500tdw MPP m.v. Edenborg 11500tdw MPP m.v. Edenborg
