• 2800 TDW Multi Purpose Vessel

    For the short sea trade in combination with trading on narrow waterways, Conoship International designed their 2800 MPP vessel. With an airdraught of 10,5 m in ballast, this vessel will be feasible to transport general products like timbe, paper, grain, coal on inland waters. The tanktop floor will be strengthened for carrying steel coils. The cargo hold is fitted with two movable grainbulkheads, which can be slotted at 6 positions and will be handled by the hatchcover crane.

    DESIGN: Conoship International B.V., Groningen, The Netherlands

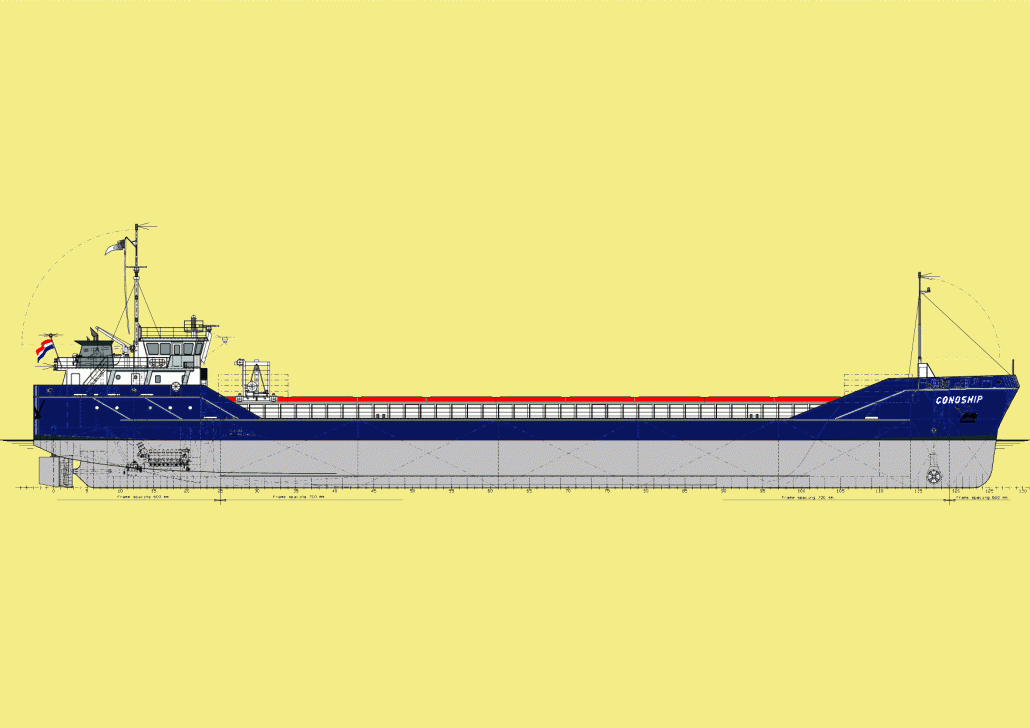

    2800tdw MPPdesign
PRINCIPAL PARTICULARS
Length over all88.00 m
Length between p.p.84.98 m
Breadth moulded13.40 m
Depth6.00 m
Draught4.10 m
Deadweight2800 ton
Gross tonnage2300
Speed (service)10 kn
EQUIPMENT
Main engine749 kW
Auxiliary engines (2x)124 kW
Emergency generator64 kW
Bow thruster205 kW
CONTAINER CAPACITIES
Hold dim.62.30 x 10.80 x 6.60 m
Cargo hold capacity156000 cb.ft
Tank top load15 t/m2
CAPACITIES
MDO120 m3
Gasoil35 m3
Potable water30 m3
Ballast water1760 m3
2800tdw MPPdesign
2800tdw MPPdesign
