3500 TDW Multi Purpose Vessel

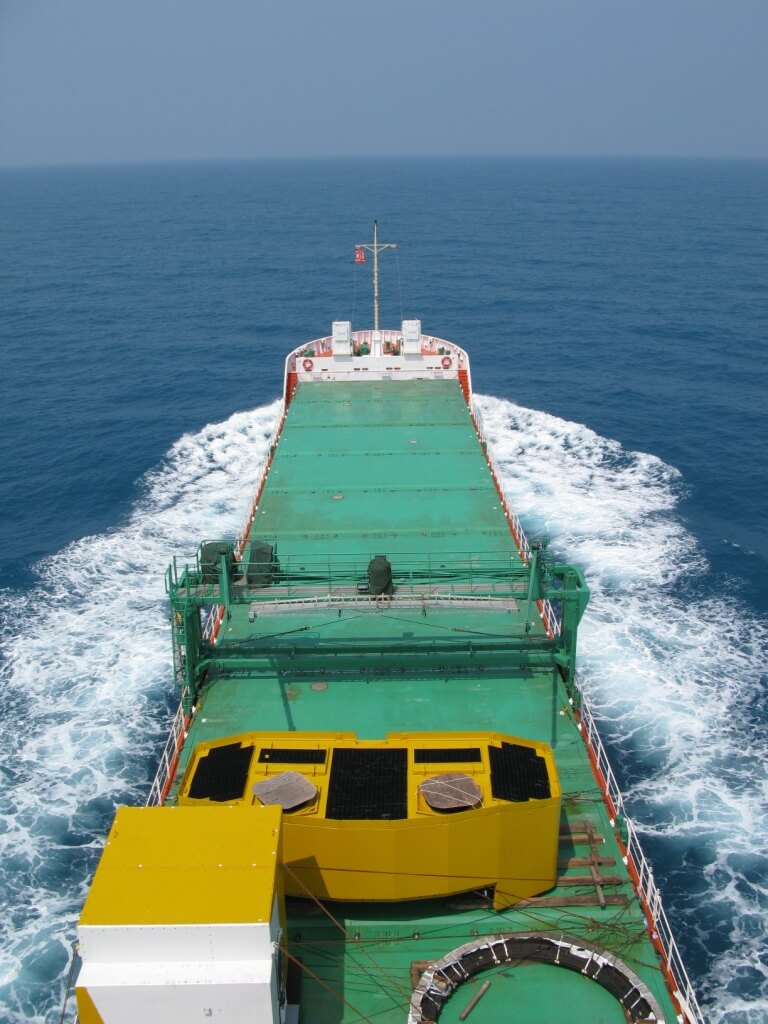

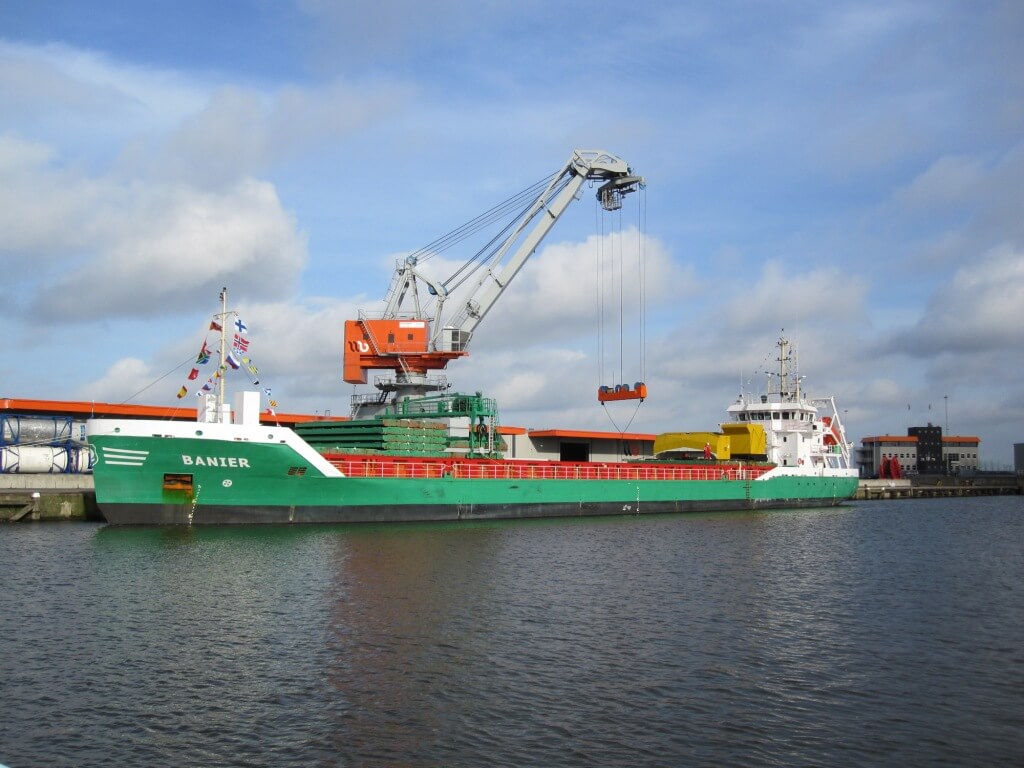

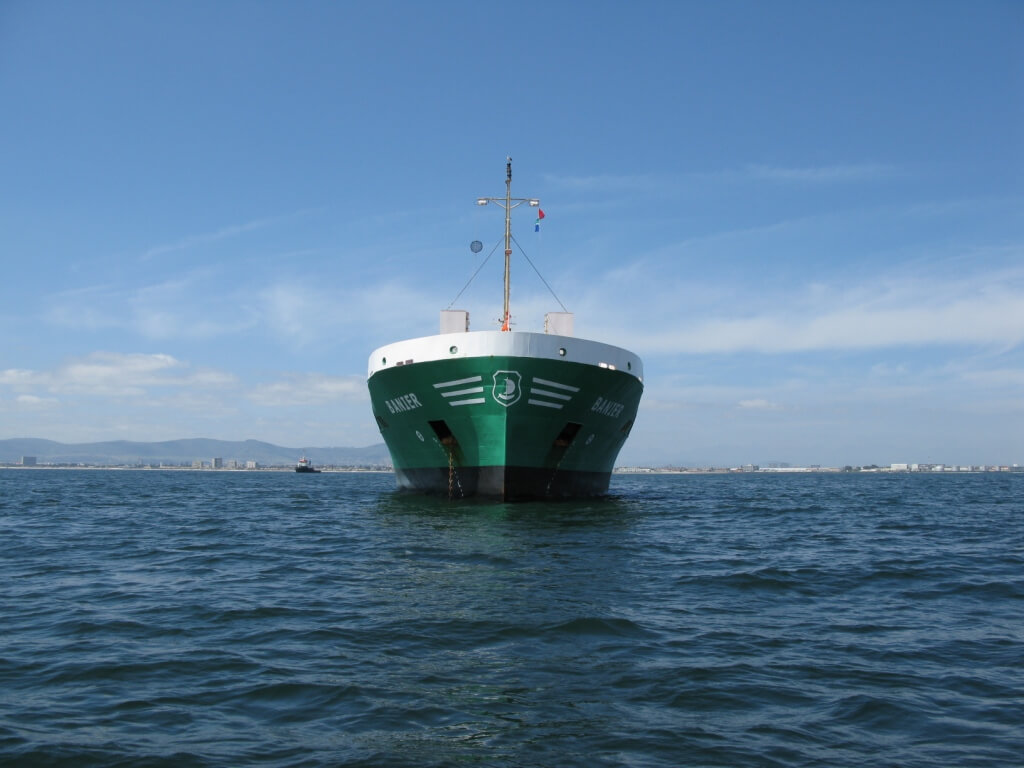

After a long journey from the building yard m.v. ‘Banier’ arrived in her homeport Delfzijl on October 31th. She is the first vessel out of a series of six vessels ordered by Delfzijl based shipping company Wijnne Barends and affiliated owners. The advantage of this Conoship International B.V. design consists of an optimized hull shape for operating in ice environments with maintaining a high service speed and excellent manoeuvring capabilities. The vessel has a relatively large hold suitable for bulk, project cargoes and also for containers.

VESSEL NAME: m.v. ‘Banier’

OWNER: Scheepvaartonderneming Banier C.V., Delfzijl, The Netherlands

BUILDER: Wenling Hexing Shipyard Ltd., Zhejiang, China

PRINCIPAL PARTICULARS
Length over all	94.70 m
Length between p.p.	91.35 m
Breadth moulded	13.40 m
Depth	7.80 m
Draught	5.30 m
Deadweight	3500 ton
Gross tonnage	2850
Speed (service)	13.3 kn
Ice Class	Finnish-Swedish 1A

EQUIPMENT
Main engine	2000 kW
Shaft generator	315 kW
Auxiliary engines (2)	140 kW
Bow thruster	250 kW

HOLD PARTICULARS
Hold dim.	61.60 X 11.20 x 8.34 m
Cargo hold capacity	194500 cb.ft
Tank top load	15 t/m2
Container capacity (total)	60 TEU

CAPACITIES
HFO	222 m3
Gasoil	47 m3
Potable water	38 m3
Ballast water	1760 m3
