750 TEU Container feeders

750 TEU Containerfeeders

Design Philosophy

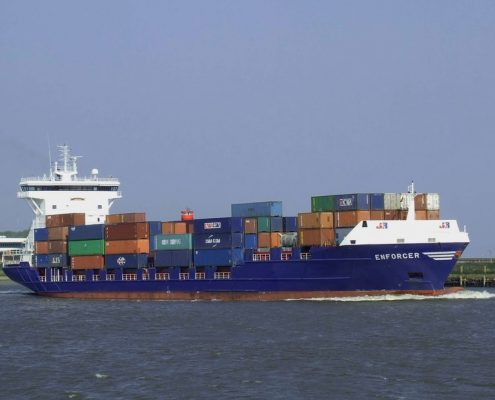

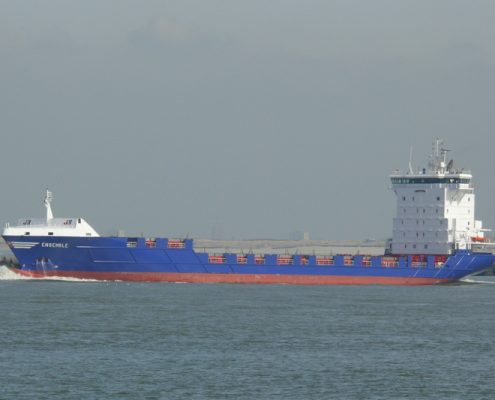

In 2005 Conoship International B.V. designed a new container feeder vessel of 750TUE which is very well received in the market and made use by several companies. The vessels were built by the Solas II-2 regulations and Iceclass E3 regulations. They have three holds and are optimized to carry 45 ft. containers in the hold as well as on deck. They can take up to 120 reefer containers on deck and 70 more in the hold. This high intake of 14 tons and the service speed of 18 knots marks the new breed of container feeder vessels.

EQUIPMENT
Main engine	7200 kW
Shaft generator	1000 kW
Auxiliary engines (2x)	350 kW
Bow thruster	750 kW

CONTAINER CAPACITIES
Containers in hold	225 TEU
Containers on deck	525 TEU
Containers (total)	750 TEU
Reeferpoints	190 pcs

CAPACITIES
HFO	720 m3
Gasoil	114 m3
Potable water	80 m3
Ballast water	4990 m3

PRINCIPAL PARTICULARS
Length over all	134,65 m
Length between p.p.	125,6 m
Breadth moulded	21,5 m
Depth	9,30 m
Draught	7,00 m
Deadweight	9300 ton
Gross tonnage	7680
Speed (service)	7680
Ice Class (optional)	Finish-Swedish 1A
