• 9000 TDW Multi Purpose Vessel

    For Wagenborg Shipping B.V., Conoship International B.V. developed the Bijlsma Trader 9000. The vessel is suitable for the carriage of various kinds of dry bulk and mixed cargo commodities, along with rolls of steel and large structures. Because of the high service speed of 16 knots and a specially designed pontoon hatch system which enables block-stowage the design is also very suitable for the carriage of containers.

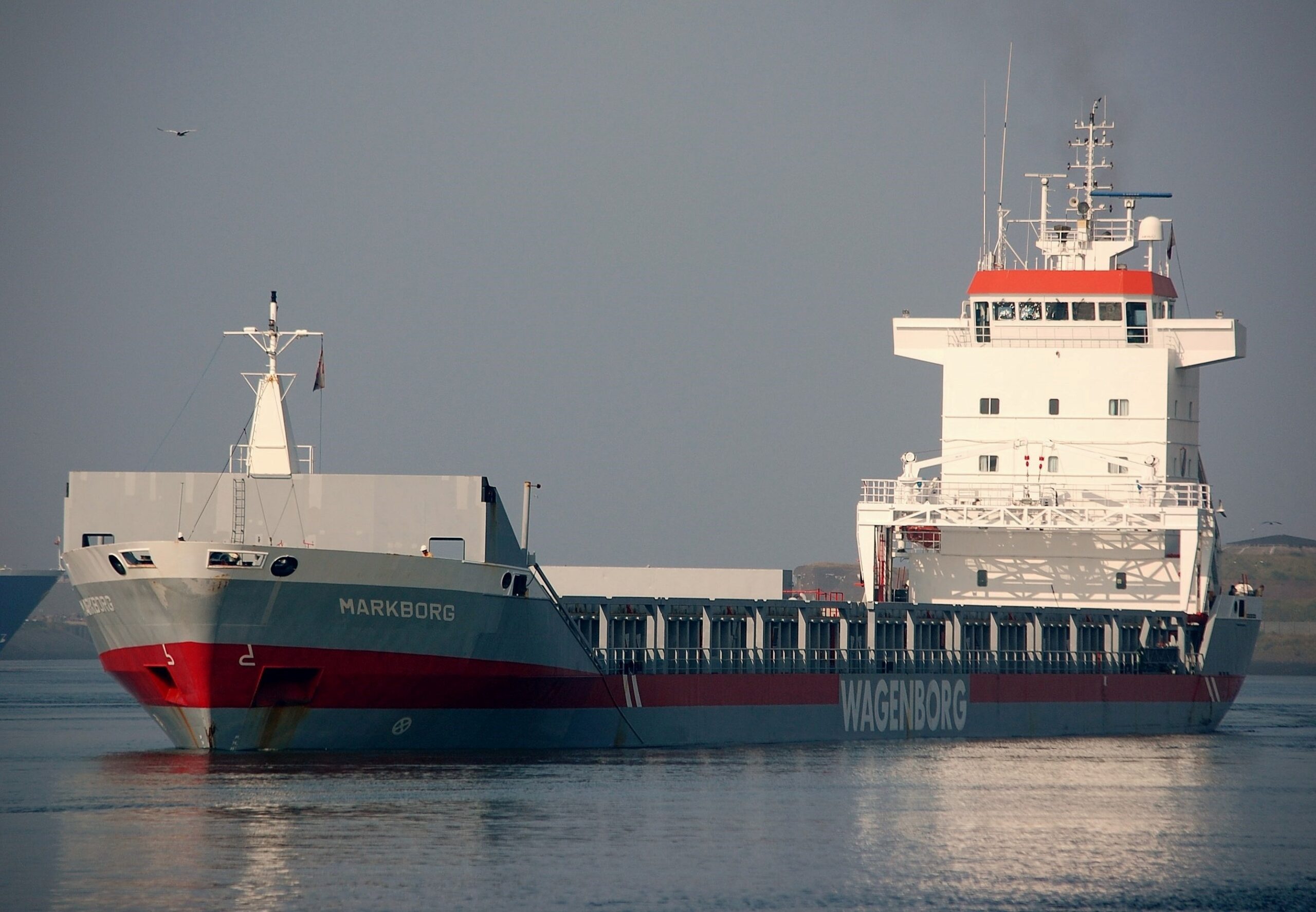

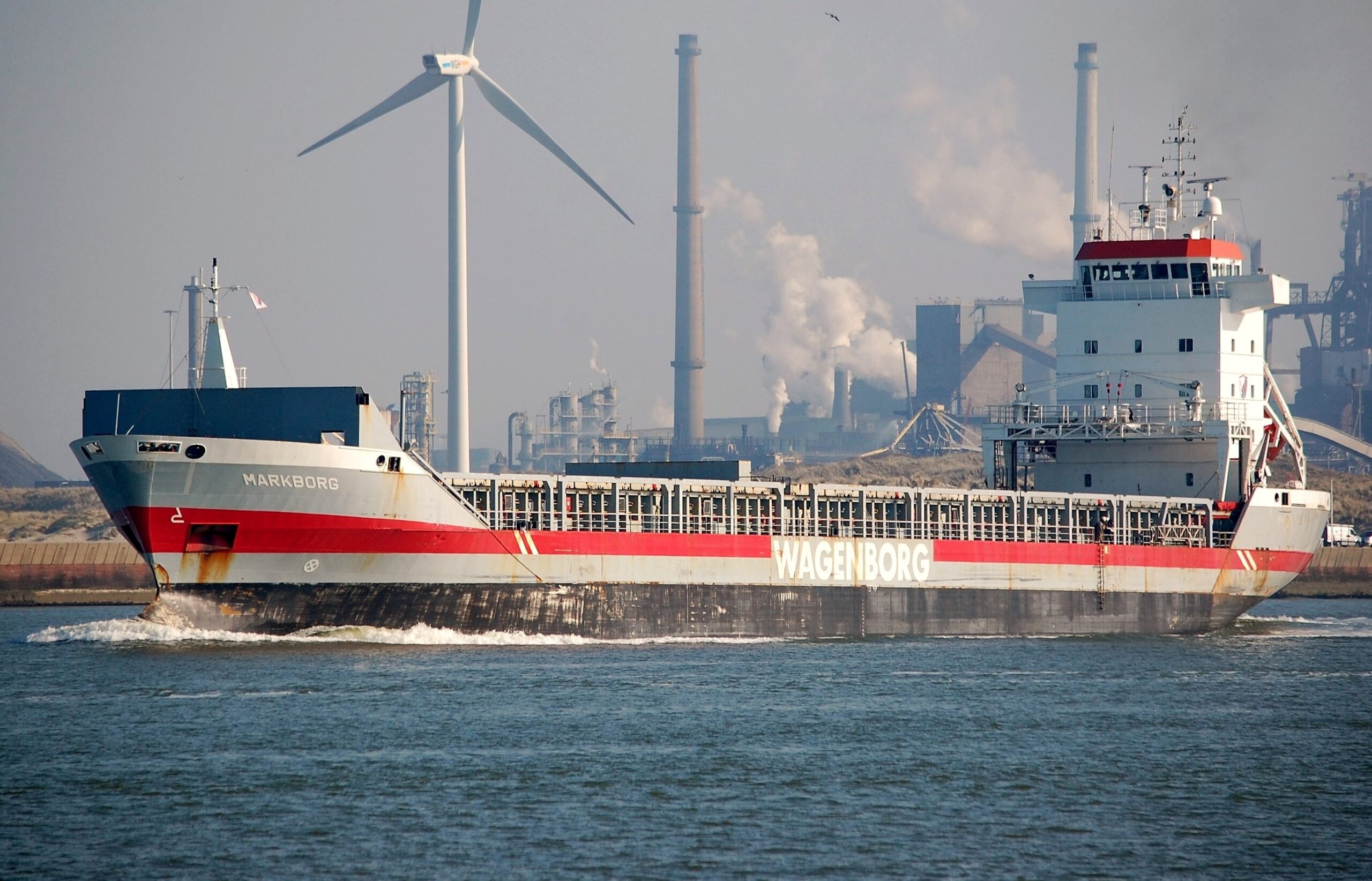

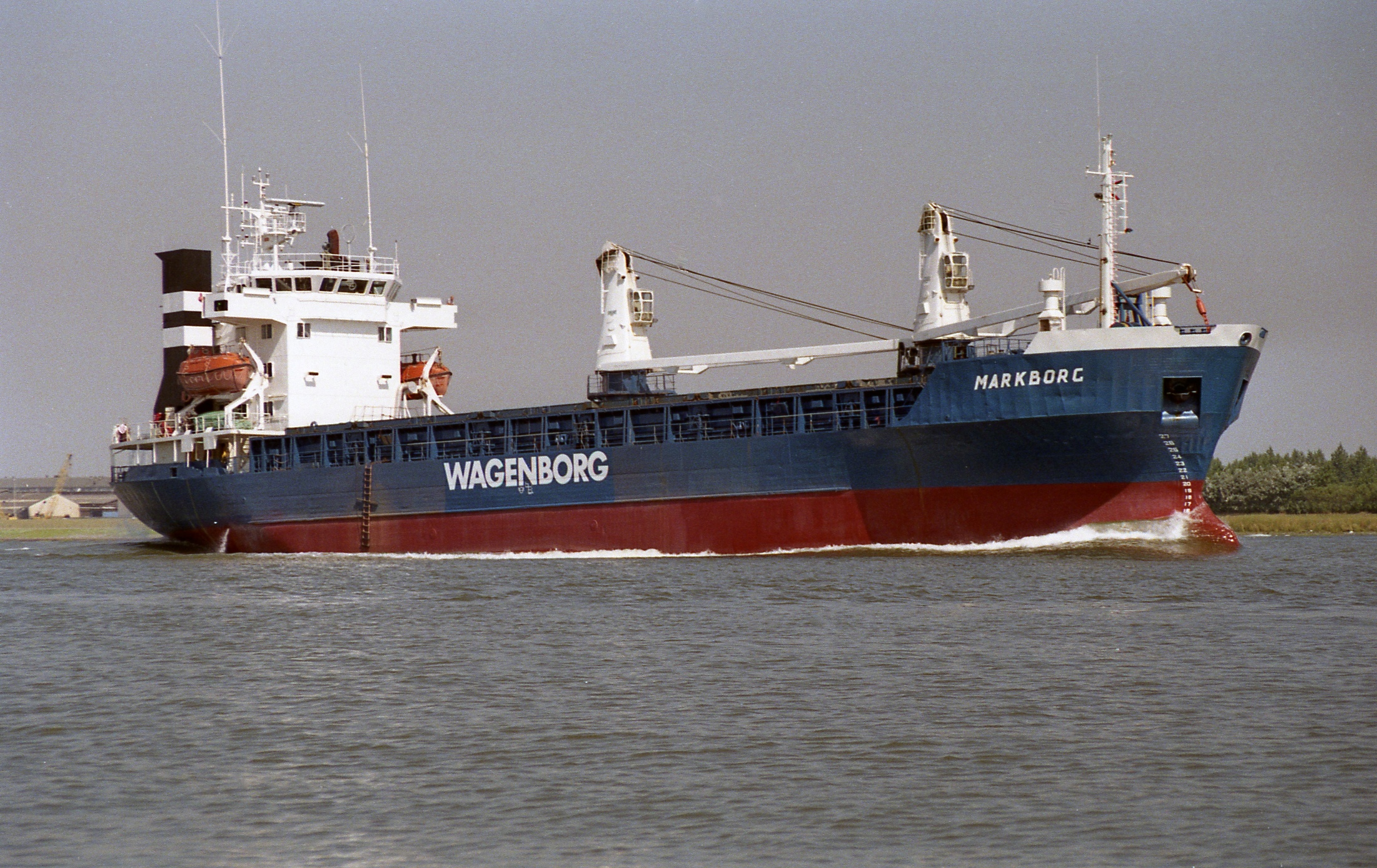

    VESSEL NAME: m.v. ‘Markborg’

    OWNER:Royal Wagenborg, Delfzijl, The Netherlands

    BUILDER: Scheepswerf Bijlsma, Wartena, The Netherlands

    Maineborg
PRINCIPAL PARTICULARS
Length over all134.50 m
Length between p.p.127.20 m
Breadth moulded16.50 m
Depth9.80 m
Draught7.11 m
Deadweight9140 ton
Gross tonnage6540
Speed (service)16 kn
Ice ClassFinnish-Swedish 1A
EQUIPMENT
Main engine5280 kW
Shaft generator750 kW
Auxiliary engines (2x)378 kW
Bow thruster700 kW
CONTAINER CAPACITIES
Hold dimensions hold 139.20 x 13.50 x 10.86 m
Hold dimensions hold 254.76 x 13.50 x 10.86 m
Cargo hold capacity461200 cb.ft
Tank top load20 t/m2
Containercapacity(total)604 TEU
CAPACITIES
HFO640 m3
Gasoil116 m3
Potable water66 m3
Ballast water4290 m3
Maineborg
Maineborg
Maineborg
