Explorer Yacht Ragnar

Design Philosophy Ragnar

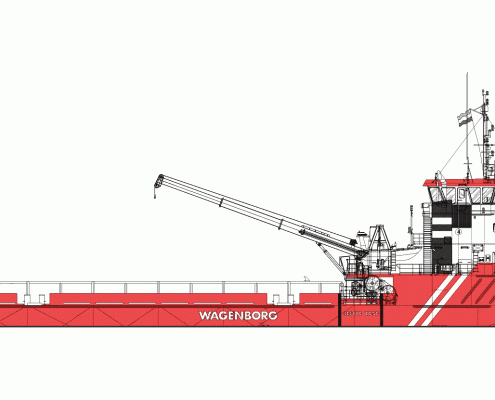

In 2017 our Research and Consultancy department was assigned with the conversion design study for the ice breaking multipurpose support vessel Sanaborg (also originally designed by Conoship International) to the unique explorer superyacht “Ragnar”. Based on the owners and Icon Yachts’ wishes and demands we provided a technical general arrangement plan together with a positive advice for the technical feasibility of this conversion.

During the conversion stage we provided the complete naval architecture and detailed construction design and engineering of the new superstructure of the vessel, based on the current rules and regulations by Class (Polar code 5 and Large yacht code 3). Resulting in an ultimate adventure experience explorer superyacht, delivered with unsurpassed style and luxury, fully compliant within the applicable rules and regulations by Class. Ragnar was launched at the ICON Yachts shipyard in January 2020.

Watch Ragnar on our YouTube channel

Main particulars
Length over all68.20m
Length waterline65.85m
Length between perpendiculars63.45m
Breadth moulded14.30m
Depth to main deck5.10m
Draught 2.50m
Gross Tonnage2,450
Complement
Owner / Guest / Staff / Crew4 / 12 / 4 / 12pers
Cruise / Top speed10.5 / 12.5kn
Equipment
Main engines2x 1,950bkW
Auxiliary engine250bkW
Bow thruster200bkW
Areas
Luxury area690m2
Exterior area1,030m2
Crew area205m2
Service / storage area650m2

Images & video courtesy of Icon Yachts
Photo (header) courtesy of Guy Fleury
