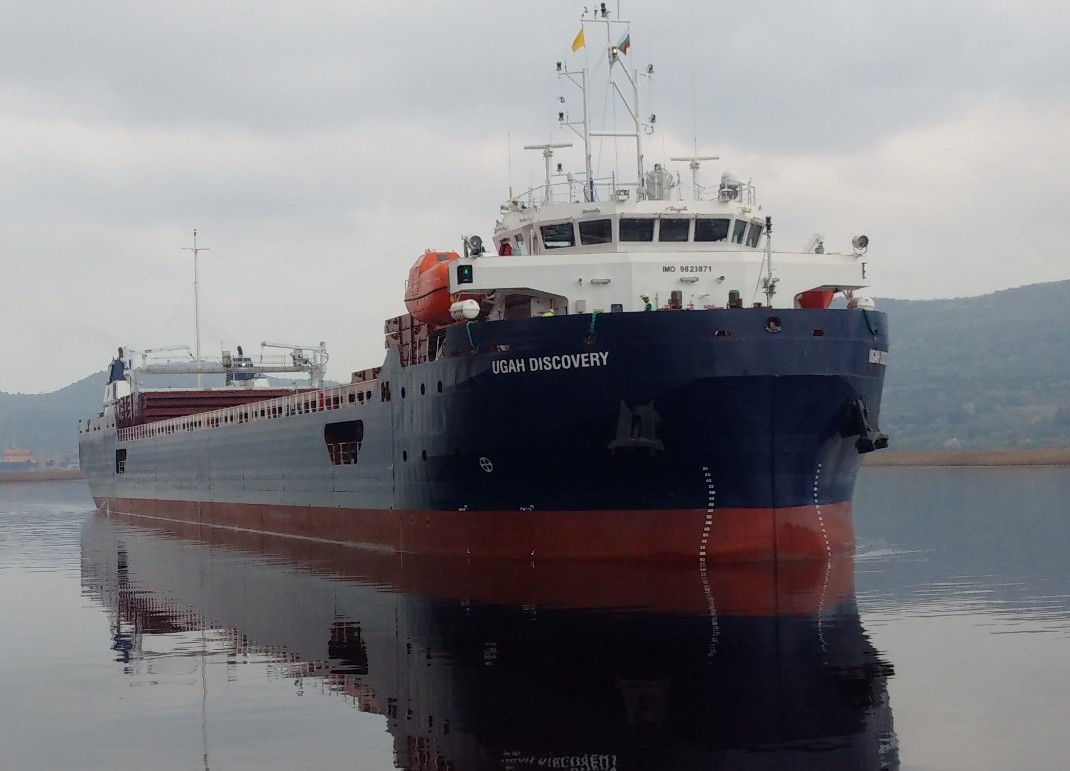

5,500 tdw Multi Purpose Vessel Ugah Discovery

Design Philosophy

For, and in close cooperation with the owner, Albros Shipping, Conoship developed an ‘Open Top’ vessel especially designed for the transport of dry cargo and containers. Optional heavy lift transport through SPMT vehicle by means of a stern ro-ro ramp on the vessel can be added to the design.

The challenge in this design was to obtain the maximum deadweight within the draught limit of 4.50 m, and keep the focus on the weight and sustainability of the ship’s construction in combination with excellent fuel consumption. Therefore the design was optimized through CFD calculations.

Watch Ugah Discovery on our YouTube Channel

Main particulars
Length over all120.00m
Length between perpendiculars118.00m
Depth to main deck6.30m
Draught design4.50m
Deadweight @ T = 4.50 m5,500t
Gross Tonnage5,425GT
Nett Tonnage2,392NT
Main Engine2 x 960bkW
Cargo hold details
Dimensions hold79.10×13.40×8.90m
Hold Capacity323,700cu.ft
Tanktop load12.00t/m2
Container In Hold180TEU
Container On Deck60TEU
Container Total240TEU
Tank Capacity
Fuel oil (HFO)200m3
Fuel oil (MGO)110m3
Potable water80m3
Ballast water2,595
