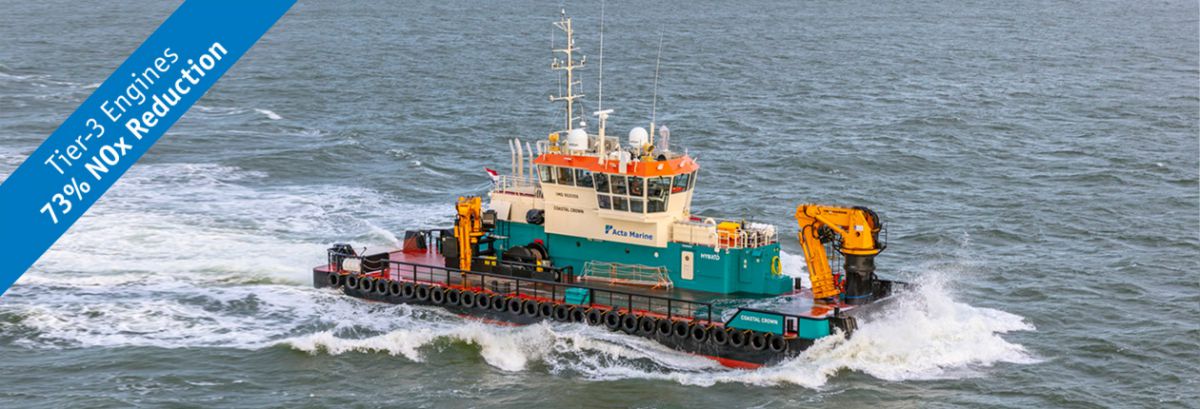

Workboat Coastal Crown

Design Philosophy

The Coastal Crown is developed in close cooperation with the shipyard Bijlsma Wartena and the owner Acta Marine to become the most sustainable workboat at the moment in her market.

Equipped with Tier III engines and a 300kWh battery package for both propulsion and the ship’s accommodation to resulting in up to 15% reduction on fuel and CO2 emissions and 73% on NOx emissions.

In addition, Conoship has provided the complete naval architecture, basic structural and diagram design as well as the detailed construction and piping engineering.

Read more about the build on the website of Bijlsma Shipyard

Main particulars
Length over all (excl. fenders)35.00m
Length between perpendiculars33.60
m
Breadth moulded11.80m
Depth to main deck3.20m
Draught summer2.12m
Gross Tonnage427GT
Nett Tonnage128NT
Complement17pers
Service speed9.00kn
Bollard Pull30t
Miscellaneous
Dynamic Positioning systemDP2
Propulsion
Main engines2× 895bkW
Azimuth stern thruster470bkW
Auxiliary generator sets (total)1,290bkW
Shaft generator68ekW
Battery package300kWh
Bow thruster2× 249bkW
Tank Capacity
Fuel oil (MGO)110m3
Potable water91m3
Dirty water53m3
Deck equipment capacity
Deck area100m2
Deck crane A (SWL) @ outreach = 16.50 m11.30m
Deck crane B (SWL) @ outreach = 15.07 m5.93t/m2

Find out more about this vessel on the website of Acta Marine

All images courtesy of Acta Marine and/or Bijlsma Wartena
